PVC Cone Roller
Feature
Adopt 0200 series non-power rollers, add plastic cone sleeves, realize the function of non-power turning, and inherit the technical characteristics of 0200 rollers.
PVC Cone Sleeve Roller, by adding a conical sleeve (PVC) to the conventional roller, various types of turning mixers can be made to realize curved conveying. Standard taper is 3.6°, special taper can not be customized.
Steel cone roll, non-standard size, wide temperature range, can be customized steel cone roll. 3.6° standard taper can be used, and other tapers can also be customized.
General Data
|
Maximum load |
100KG |
|
Maximum speed |
0.5m/s |
|
Temperature range |
-5°℃~40°C |
Materials
|
Bearing housing |
Plastic carbon steel components |
|
Sealing end cap |
Plastic components |
|
Call |
Carbon steel |
|
Roller surface |
Plastic |

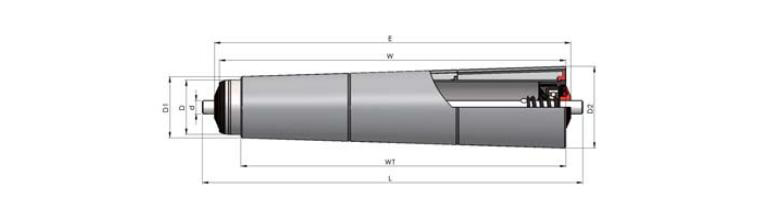

Structure
|
Taper Sleeve Parameter Table |
||
|
Taper Sleeve Length (WT) |
Taper Sleeve Diameter (D1) |
Taper Sleeve Diameter (D2) |
|
300 |
Φ56 |
Φ74.9 |
|
350 |
Φ52.9 |
Φ74.9 |
|
400 |
Φ56 |
Φ81.1 |
|
450 |
Φ52.9 |
Φ81.1 |
|
500 |
Φ56 |
Φ87.4 |
|
550 |
Φ52.9 |
Φ87.4 |
|
600 |
Φ56 |
Φ93.7 |
|
650 |
Φ52.9 |
Φ93.7 |
|
700 |
Φ56 |
Φ100 |
|
750 |
Φ52.9 |
Φ100 |
|
800 |
Φ56 |
Φ106.3 |
|
850 |
Φ52.9 |
Φ106.3 |
Selection Parameter Table
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Locating step |
Shaft Length L |
Shaft Length L |
Material |
Selection of the sample |
Special requirements |
|||
|
D |
t |
d |
|
BF |
|
(Female thread) |
Spring pressure |
Steel zincplated |
Stainless Steel |
Aluminum |
PVC |
OD 50mm Shaft dia 11mm |
Taper sleeve length 300mm |
|
|
|
|
|
|
|
|
|
AO |
B1 |
CO |
DO |
Tube Length 350mm |
|
|
Φ50 |
1.5 |
11hex Φ12/15 |
50KG |
W+10 |
W+9 |
W+10 |
W+31 |
✓ |
✓ |
|
|
Stainless Steel 201, Spring Pressed 0200C.5011.350.0.00 |
|
