Plastic Sprocket Roller for friction drive conveyor| GCS

Short Description:

Drive series sprocket rollers 1211/1212

Plastic sprocket friction drive

The sprocket and roller wall are conveyed by fixed friction, without accumulation capacity

Plastic steel single sprocket/double sprocket friction accumulation roller, suitable for friction conveying of light-load conveying objects.
In most types of unit conveyors, the roller is used to transport the product. Rollers can be customized for extreme temperature ranges, heavy-duty, high speed, dirty, corrosive, and flush environments, and are widely used in light industry.

Send email to us Download as PDF

Product Detail

Product Tags

Feature

The transmission end is equipped with a plastic steel sprocket and internal friction kit, relying on friction to provide transmission torque;
When the conveyed object is obstructed, the surface of the roller and the conveyed object are stationary, which can reduce the wear and tear of the surface of the conveyed object;
The end sleeve adopts plastic precision bearing components for smooth running.

General Data

Conveying load	Single Roller≤400KG
Maximum speed	0.5m/s
Temperature range	-20℃~80C

Materials

Bearing housing	Plastic carbon steel components
Sealing end cap	Plastic components
Sprocket small end cap	Plastic
Ball	Carbon steel
Roller surface	Steel/ Aluminum

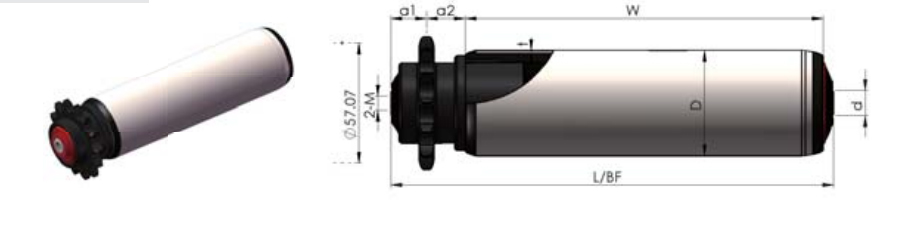

1211-Plastic steel single sprocket friction accumulation roller

Structure

Sprocket parameters
Sprocket	a1	a3
08B14T	18	22

1211 Selection parameter table
Tube diameter	Tube Thickness	Shaft Diameter	Maximum load	Bracket width	Sprocket	Shaft Length L	Material			Selection of the sample
D	t	d		BF		(Female thread)	Steel galvanized	Stainless Steel	Aluminum	OD50mm Shaft dia12mm
Φ50	1.5	Φ12/15	150KG	W+42	08B41T	W+42	✓	✓	✓	Stainless steel 201, Female thread
Φ60	2.0	Φ/12/15	160KG	W+42	08B41T	W+42	✓	✓	✓	1211.50.12.800.B0.10

Remarks: The p50 pipe can be covered with 2mm PVC soft rubber; the medium 50 pipe can be equipped with a tapered sleeve for turning conveying.

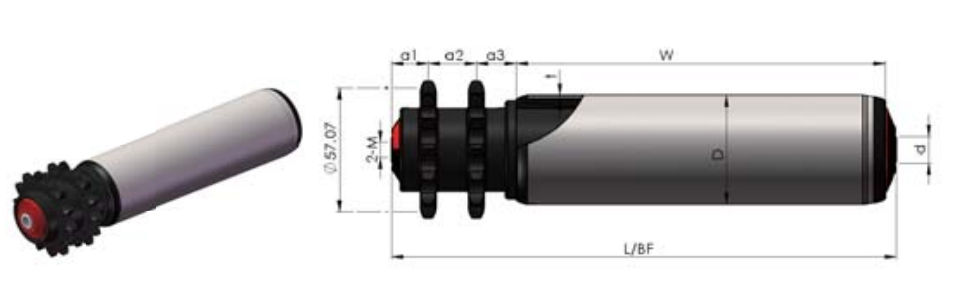

1212-Plastic steel single sprocket friction accumulation roller

Structure

Sprocket parameters
Sprocket	a1	a3
08B14T	18	18.5

1212 Selection parameter table
Tube diameter	Tube Thickness	Shaft Diameter	Maximum load	Bracket width	Sprocket	Shaft Length L	Material			Selection of the sample
D	t	d		BF		(Female thread)	Steel galvanized	Stainless Steel	Aluminum	OD50mm Shaft dia12mm
										Tube Length800mm
Φ50	1.5	Φ12/15	150KG	W+64	08B41T	W+64	✓	✓	✓	Stainless steel 201, Female thread
Φ60	2.0	Φ/12/15	160KG	W+64	08B41T	W+64	✓	✓	✓	1212.50.12.800.B0.10
