Curved rollers

GCS can custom make conveyor rollers

GCS can manufacture rollers to your specifications, applying our years of experience in materials and design for both OEM and MRO applications. We can provide you with a solution to your unique application.

Custom options include but many times not limited to:

Component materials:

Tubing:  Galvanized Steel, Stainless Steel, PVC, Chrome plated, zinc plated.

Bearings:  ABEC Precision, All Stainless, Plastic Bushings.

Axle Material:  CRS steel, Stainless Steel, Stub shafts, and Plastic.

Curved rollers

For long-lasting performance, our conveyor systems utilize mechanical precision bearings. Known for their superior durability and load-carrying capacity, these bearings ensure that the rollers run smoothly and efficiently. In addition, our rollers are galvanized to add an extra layer of corrosion protection and extend their life. This ensures a reliable and low-maintenance solution for your material handling needs.

As a manufacturing facility, GCS China understands the importance of flexibility and customization. We offer a wide range of gravity rollers, allowing you to choose the most suitable option for your specific requirements. This customization extends to our conveyor systems, as we can configure them to meet your unique operational needs. Our team of experienced professionals is ready to help you find the perfect solution for your business.

Where to buy curve roller?

We manufacture a wide selection of rollers with options to meet most of your material handling needs. If you cannot find a standard roller to fit your application, we can likely produce a custom roller to meet your needs. For conveyor rollers, it is important to make sure you provide the proper measurements to ensure the roller will fit properly. We can help you find the right roller for your application by using your conveyor system’s measurements.

Cone Roller

Cone Roller drawings
Model (turn radius) Small end dia of taper roll D1 Dia of shaft Taper Big end dia of taper roll D2
RL=200 300 400 500 600 700 800 900 1000
CR50-R900  φ50  12/15 3.18 61.1 66.6 72.2 77.7 83.3 88.8 94.3 99.8 105.4
CR50-R790 3.6 62.57 68.9 75.2 81.5 87.8 94.0 100.3 106.6 112.8
CR50-R420 6.68 73.3 85 96.6 108.3 120 131.7  / /  /

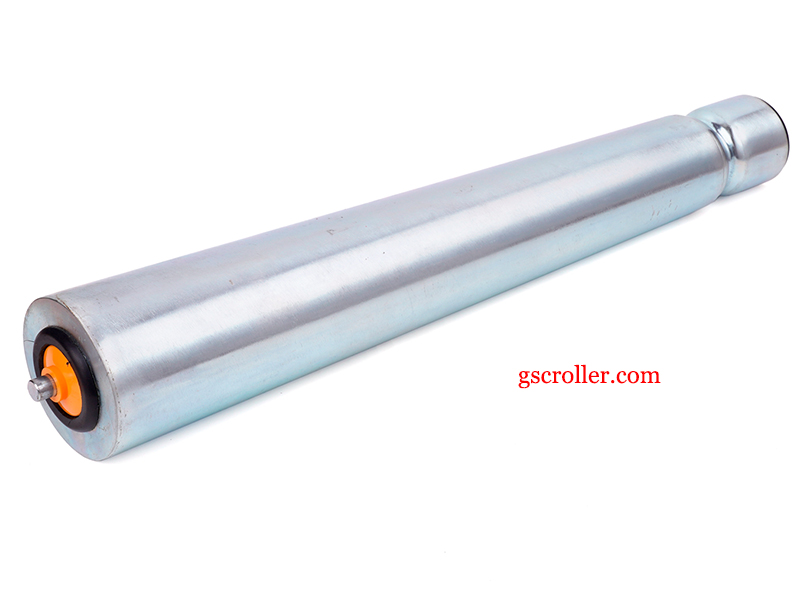

Conical rollers typically have a tapered shape, with a larger diameter at one end and a smaller diameter at the other end. This design allows the rollers to smoothly guide materials around curves in a conveyor system. The main components of conical rollers include the roller shell, bearings, and shaft. The roller shell is the outer surface that comes into contact with the conveyor belt and the materials being transported. Bearings are used to support the roller shell and allow it to rotate smoothly.

In most types of unit conveyorsrollers are used to convey products. Rollers can be customized for extreme temperature ranges, heavy loads, high speeds, dirty, corrosive, and washdown environments and are widely used in the light industry.

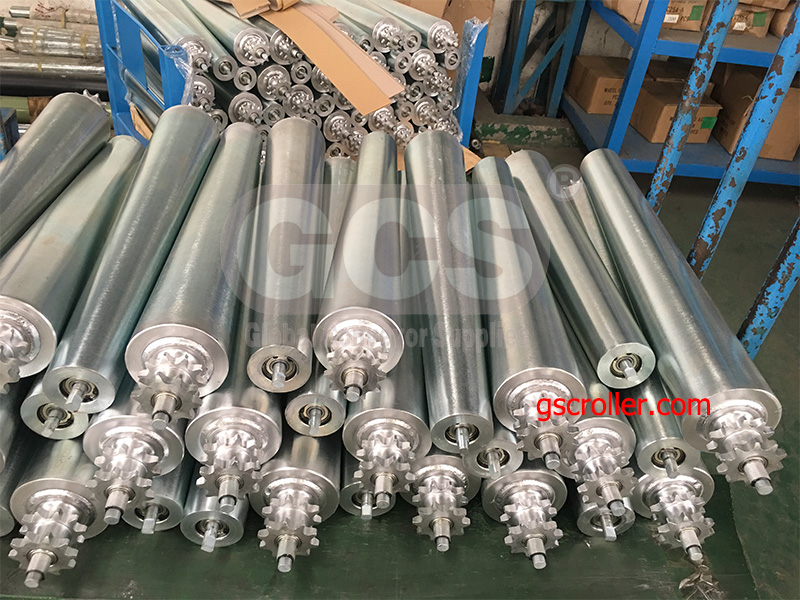

Conical rollers with double rows of sprockets in special rotating rollers in the conveyor system.

Curved roller conveyors are used for the continuous conveying of cartons and bags of different sizes in lightweight transportation.

Curved elements with different radii and angles can be realized using precision tapered rollers.

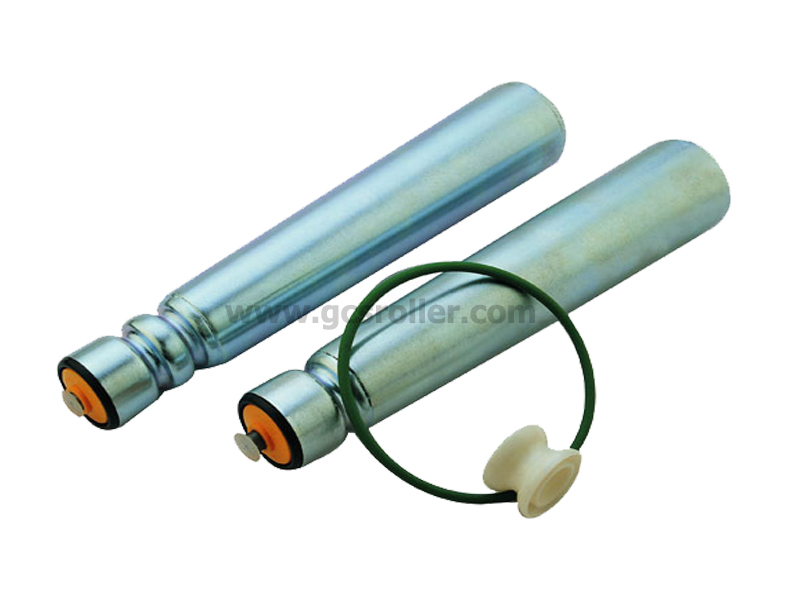

Double Groove O-Belt Roller Curve Conveyor

“O” belt roller curve conveyor is suitable for light-duty material conveying.

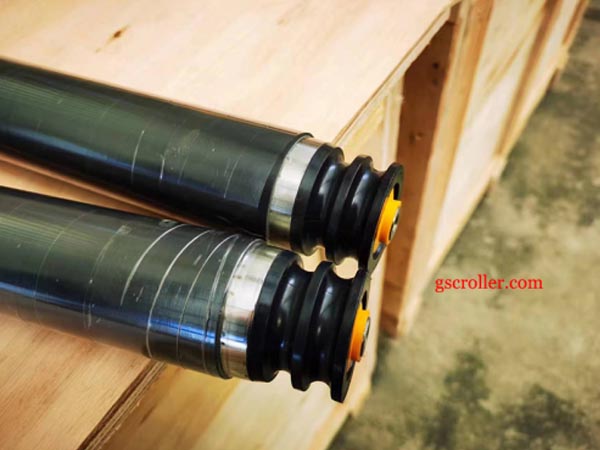

Curve rollers with steel rollers jacketed with PVC have the benefit of withstanding light, medium, and heavy loads are durable and can be used in cartons, totes, and goods conveying systems.

GCSROLLER can accept small custom orders, and design samples service, please contact us now!


Adopt 0200 series non-power rollers, add plastic cone sleeves, realize the function of non-power turning, and inherit the technical characteristics of 0200 rollers.

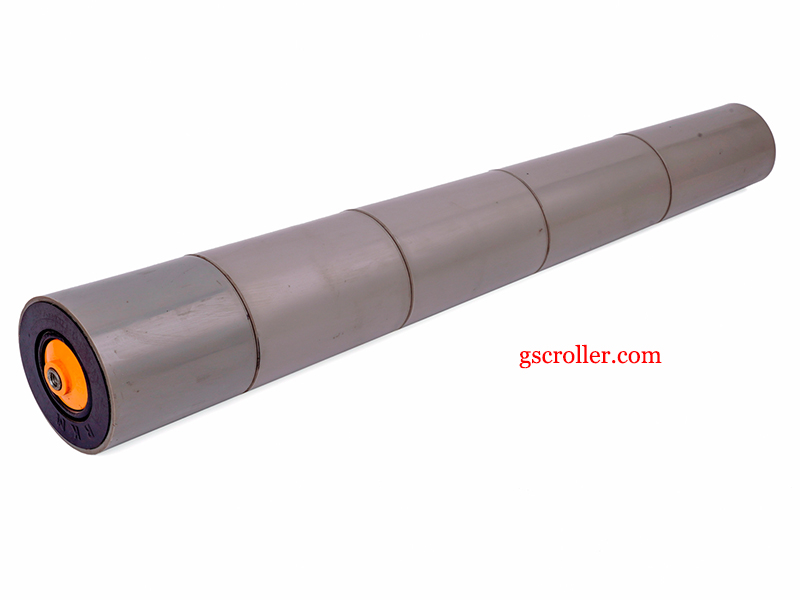

PVC Cone Sleeve Roller, by adding a conical sleeve (PVC) to the conventional roller, various types of turning mixers can be made to realize curved conveying. The standard taper is 3.6°, special taper can not be customized.


These sprocketed heavy-duty conveyor rollers are used to replace or upgrade the rollers on heavy-duty chain-drive conveyors. Also known as chain-drive live rollers, they are ideal for moving heavy items such as pallets, drums, and bulk containers. The sprocketed rollers have teeth that engage with the drive chain to prevent the chain from slipping, even in dirty or oily conditions. These conveyor rollers are installed in roller conveyors to support and move items on the conveyor. The rollers let loads roll from one place to another, reducing the effort it takes to move the loads.

Tapered rollers for turning conveyor systems have an irreplaceable position.

GCS Curved roller conveyors are designed for the transport of various cargo, mostly in production and packaging lines and transport to storage The roller conveyor curves change the transport direction of conveyed material. The tapered rollers retain the alignment of the conveyed material between

Roller Conveyor System Design packaging line

The Conical Conveyor Roller is mainly used for curved roller conveyor lines, and it can be customized into a 90-degree turn and a 180-degree turn.

Its application is mainly to transport goods. In addition, there are similar mechanized automatic equipment including case-sealing machines,

unpacking machine, wrapping machine, winding machine, or palletizing machine.

GCSroller has been a physical manufacturer and Exporter for many years, from designing the requirements to controlling the production until the product reaches the customer. We provide our partners with everything they need to help them develop their markets and achieve a win-win situation.


Conveyor Rollers Replacement That’s Customized to Your Requirements

In addition to a large number of standard sized rollers, we are also able to craft individual roller solutions for niche applications. If you have a challenging system that needs rollers that are made to your particular dimensions or that need to be able to cope with a particularly tough environment, we can normally come up with a suitable answer. Our company will always work with customers to find an option that not only delivers the required objectives, but which is also cost-effective and able to be implemented with minimal disruption. We provide rollers to a wide range of industries, including companies involved in ship building, chemical processing, food & beverage production, transport of hazardous or corrosive substances and many more.

Write your message here and send it to us

Versatile, Customized Conveyor Systems that Last

GCS present the most versatile conveyor system rollers to suit any application. Constructed using the highest quality roller conveyor system workmanship and designed to stand even the most rigorous use, our rollers provide function and utility that you can trust.

A Wide Range of Materials

Is corrosion an issue with your processing or manufacturing business? You should consider our plastic roller or one of our other non-corrosive options. If so, consider our pvc conveyor rollers, plastic conveyor rollers, nylon conveyor rollers, or stainless conveyor rollers.

We have the custom heavy duty roller conveyor system that you need. Conveyor Systems conveyor roller manufacturers can give you heavy duty conveyor rollers, steel conveyor rollers and durable industrial rollers.

Increased Workflow Capacity

A busy warehouse facility requires robust solutions for maximum productivity. While labor costs and shipping times may be blowing out your budget, installing our high quality conveyor roller can dramatically increase your workflow capacity. By speeding up the processes that you use to deliver your goods by using high quality conveyor system rollers, you will see benefits in many aspects of your facility. From a reduced burden on your employees to meet demands, as well as a safer and more efficient workplace environment, you will see a higher level of customer satisfaction and most importantly, an increase in your bottom line.

Improved Safety Measures for Any Warehouse or Facility

GCS is committed to providing the most safe and reliable rollers to suit any system or process in a busy working facility, whether the conveyor uses a gravity or powered mechanism of action. A strong and long lasting effect is produced through self-lubrication offered on many of our rollers. Suitable for a range of applications including food handling, chemical transport, volatile material movement and high capacity warehousing, our range of custom conveyor system rollers are backed by our service guarantee that ensures safe and efficient use in a consistent and durable manner.

Cost Effective Approach to Time Management

Implementing a robust conveyor roller solution to your facility need not be the expensive effort that it once was. GCS offers the most extensive range of custom conveyor rollers designed to reduce your overheads while saving you time. By automating your in-facility transportation processes with stronger and loner lasting rollers, the initial investment on implementing your conveyor roller will save you money on labor costs. With a focus on durability and use within a wide range of applications, our rollers far outperform more expensive products.

Contact GCS Today to Learn More

Finding the perfect roller for your operation is crucial, and you want to do so with little disruption to your workflow. If you need a special-size roller for your conveyor system or have questions about the rollers’ differences, we can assist you. Our customer service team can help you get the right part for your existing conveyor system.

Whether installing a new system or needing a single replacement part, finding suitable rollers can improve your workflow and increase your system’s life. We will help you get the right part with fast communication and personalized care. To learn more about our rollers and custom solutions, contact us online to speak with a specialist or request a quote for your roller needs.

Write your message here and send it to us

Frequently asked questions about conveyors roller

What Is a Conveyor Roller?

A conveyor roller is a line in which multiple rollers are installed for the purpose of transporting goods in a factory, etc., and the rollers rotate to transport the goods. They are also called roller conveyors.

They are available for light to heavy loads and can be selected according to the weight of the cargo to be transported.

In most cases, a conveyor roller is a high performance conveyor that is required to be impact and chemical resistant, as well as being able to transport items smoothly and quietly.

Inclining the conveyor allows the conveyed material to run on its own without external drive of the rollers.

What to Consider When Choosing a Roller?

Your rollers must fit your system exactly for optimal performance. Some different aspects of each roller include:

Size:  Your products and conveyor system size correlate to the roller size. The standard diameter is between 7/8″ to 2-1/2″, and we have custom options available.

Material:  We have several options for roller materials, including galvanized steel, raw steel, stainless steel and PVC. We can also add urethane sleeving and lagging.

Bearing:  Many bearing options are available, including ABEC precision bearings, Semi-precision bearings and Non-precision bearings, among other options.

Strength:  Each of our rollers has a designated load weight specified in the product description. Rolcon provides both lightweight and heavy-duty rollers to match your load sizes.

Uses of Conveyor Rollers

Conveyor rollers are used as conveyor lines to move loads from one location to another, for example, in a factory.

The conveyor rollers are suitable for conveying objects with relatively flat bottoms, as there may be gaps between the rollers.

Specific materials conveyed include food, newspapers, magazines, small packages, and many others.

The roller does not require power and can be pushed by hand or propelled by itself on an incline.

Conveyor rollers are often used in situations where cost reduction is desired.

Principle of Conveyor Rollers

A conveyor is defined as a machine that continuously transports a load. There are eight major types, of which belt conveyors and roller conveyors are the most representative.

The difference between belt conveyors and roller conveyors is the shape (material) of the line conveying the cargo.

In the former, a single belt rotates and is transported on it, while in the case of a roller conveyor, multiple rollers rotate.

The type of rollers is selected according to the weight of the cargo to be conveyed. For light loads, the roller dimensions range from 20 mm to 40 mm, and for heavy loads up to about 80 mm to 90 mm.

Comparing them in terms of conveying force, belt conveyors are more efficient because the belt makes surface contact with the material to be conveyed, and the force is greater.

Roller conveyors, on the other hand, have a smaller contact area with the rollers, resulting in a smaller conveying force.

This makes it possible to convey by hand or at an incline, and it has the advantage of not requiring a large power supply unit, etc., and can be introduced at a low cost.

How do I know what roller diameter to choose for gravity conveyors?

A typical 1 3/8” diameter roller has a capacity of 120 lbs. per roller. A 1.9” diameter roller will have an approximate capacity of 250 lbs. per roller. With rollers set on 3” roller centers, there are 4 rollers per foot, so the 1 3/8” rollers would typically carry 480 lbs. per foot. The 1.9” roller is a heavy duty roller that handles approximately 1,040 lbs. per foot. The capacity rating can also vary based on how the section is supported.
