Conveyor Roller of Chain Sprocket Roller
Feature
Rollers rely on friction to provide transmission torque, and the end of the roller is equipped with a damping adjustment mechanism, which enables it to have adjustable accumulation and release capabilities;
All-steel structure, special friction device, large load capacity; simple structure, easy installation.
General Data
|
Conveying load |
Conveying loads of a single material |
|
Maximum speed |
0.5m/s |
|
Temperature range |
-20℃~80C |
Materials
| Bearing housing | Plastic carbon steel components |
| Sealing end cap | Plastic components |
| Ball | Carbon steel |
| Roller surface | Steel |

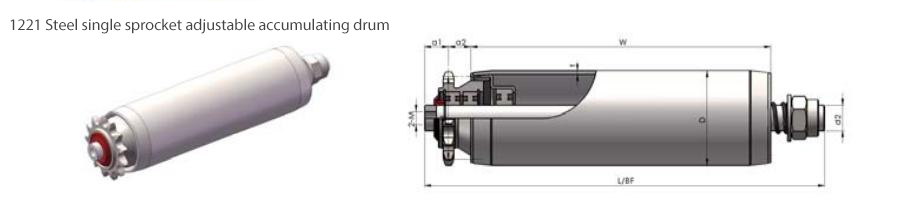

Drive series sprocket rollers-1221
Structure
|
Sprocket parameters |
||||||
|
Tube diameterΦ |
Shaft diameter |
Overall length |
Sprocket teeth |
a1 |
d2 |
d1 |
|
Φ50 |
Φ12 |
BF/L=W+71 |
08B11T |
18 |
18.5 |
Φ45.08 |
|
Φ60 |
Φ12/15 |
BF/L=W+71 |
08B14T |
18 |
18.5 |
Φ57.07 |
|
Φ76 |
Φ20 |
BF/L=W+78 |
10A13T |
20 |
18.5 |
Φ66.33 |
|
1221 Selection parameter table |
|||||||||
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Locating step |
Shaft Length L |
Material |
Selection of the sample |
|
|
D |
t |
d |
|
BF |
（Milling flat）E |
(Female thread) |
Steel zincplated |
Stainless steel |
OD60mm Shaft dia15mm |
|
|
|
|
|
|
|
|
|
|
Tube Length 1000mm |
|
Φ50 |
1.5 |
Φ12 |
80KG |
W+71 |
08B11T |
W+71 |
✓ |
✓ |
|
|
Φ60 |
2.0 |
Φ12/15 |
80KG |
W+71 |
08B14T |
W+71 |
✓ |
✓ |
Steel zincplated, Female thread |
|
Φ76 |
3.0 |
Φ12/15 |
80KG |
W+78 |
10A13T |
W+78 |
✓ |
✓ |
1221.60.15.1000.A0.10 |

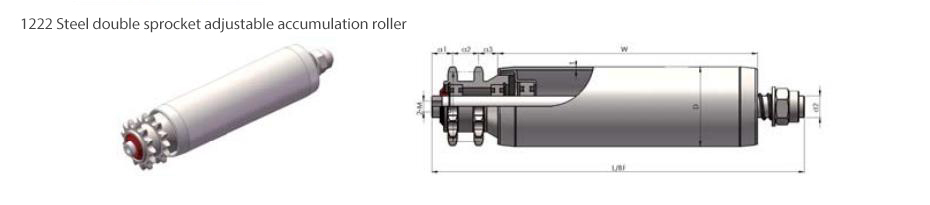

Drive series sprocket rollers-1222
|
Sprocket parameters |
|||||||
|
Tube diameterΦ |
Shaft diameter |
Overall length |
Sprocket teeth |
a1 |
d2 |
d3 |
d1 |
|
Φ50 |
Φ12 |
BF/L=W+93 |
08B11T |
18 |
22 |
18.5 |
Φ45.08 |
|
Φ60 |
Φ12/15 |
BF/L=W+93 |
08B14T |
18 |
22 |
18.5 |
Φ57.07 |
|
Φ76 |
Φ20 |
BF/L=W+103 |
10A13T |
20 |
25 |
18.5 |
Φ66.33 |
|
1222 Selection parameter table |
|||||||||
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Locating step |
Shaft Length L |
Material |
Selection of the sample |
|
|
D |
t |
d |
|
BF |
（Milling flat）E |
(Female thread) |
Steel zincplated |
Stainless steel |
OD60mm Shaft dia15mm |
|
|
|
|
|
|
|
|
|
|
Tube Length 1000mm |
|
Φ50 |
1.5 |
Φ12 |
80KG |
W+93 |
08B11T |
W+93 |
✓ |
✓ |
|
|
Φ60 |
2.0 |
Φ12/15 |
80KG |
W+93 |
08B14T |
W+93 |
✓ |
✓ |
Steel zincplated, Female thread |
|
Φ76 |
3.0 |
Φ12/15 |
80KG |
W+103 |
10A13T |
W+103 |
✓ |
✓ |
1222.60.15.1000.A0.10 |
