Gravity Roller with Steel Sprockets in Stationary-driven Rollers

Short Description:

Gravity Roller with Steel Sprockets in the Drive Roller

Heavy duty welded driven rollers – 14 teeth x ½”, 15 teeth x 5/8″ and 20 teeth x 5/8″ available; single or double sprocket options; tube body options of carbon steel, stainless steel, carbon steel sleeved PU


Product Detail

Product Tags

Chain-Driven Roller Conveyor System

Heavy-duty welded driven roller

Gravity roller with steel sprockets in stationary-driven roller

Gravity Roller (Light Duty Roller) is widely used in all kinds of industry, like manufacturing line, assembly line, packaging line, conveyor machine and logistic strore.



Model

Tube Diameter

D (mm)

Tube Thickness

T (mm)

Roller Length

RL (mm)

Shaft Diameter

d (mm)

Tube Material

Surface

PH50

φ 50

T=1.5

100-1000

φ 12,15

Carbon Steel
Stainless Steel

Zincorplated

Chrome plated

PH57

φ 57

T= 1.5,2.0

100-1500

φ 12,15

PH60

φ 60

T= 1.5,2.0

100-2000

φ 12,15

PH76

φ 76

T=2.0,3.0,

100-2000

φ 15,20

PH89

φ 89

T=2.0,3.0

100-2000

φ 20

Note: Customisation is possible where forms are not available

Product Application

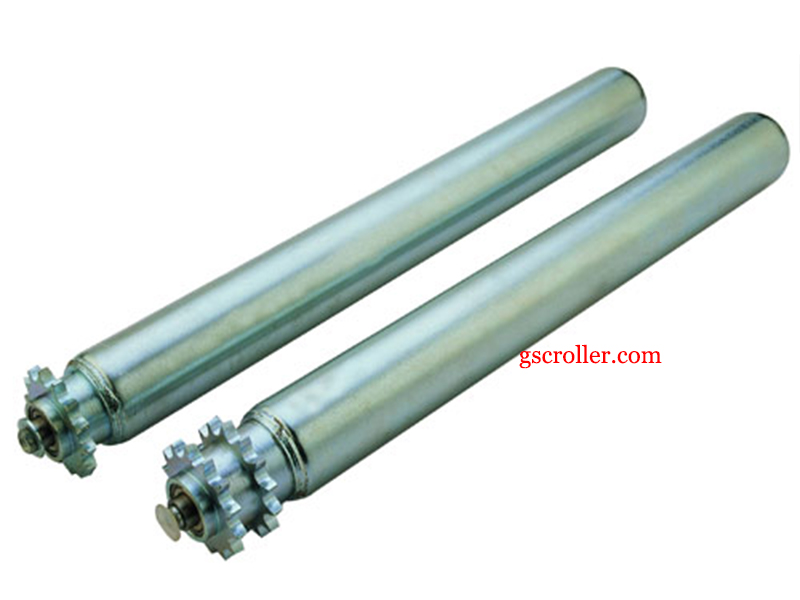

Heavy duty welded driven rollers
Gravity roller with steel sprockets in the drive roller PVC

Processes

At GCS China, we understand the importance of efficient material transportation in industrial environments. To meet this challenge, we have developed a conveying system that combines gravity roller technology with the benefits of mechanical precision bearings. This innovative solution offers several key benefits to increase productivity and streamline operations.

One of the outstanding features of our conveyor systems is the use of gravity rollers. These rollers are available in tube sizes PP25/38/50/57/60 for smooth and reliable material transportation. By utilizing gravity, items can be moved effortlessly from one point to another without the need for an external power source. This not only reduces energy consumption, but also ensures a cost-effective solution for material handling.

Manpower Conveyor Roller Tap GCS Manufacturer-01 (7)

RollerShaft

Manpower Conveyor Roller Tap GCS Manufacturer-01 (8)

Roller Tube

Manpower Conveyor Roller Tap GCS Manufacturer-01 (9)

Roller Conveyor

Production
Packaging and transport
Production

Heavy Duty Welded Rollers

Packaging and transport

Service

For long-lasting performance, our conveyor systems utilize mechanical precision bearings. Known for their superior durability and load-carrying capacity, these bearings ensure that the rollers run smoothly and efficiently. In addition, our rollers are galvanized to add an extra layer of corrosion protection and extend their life. This ensures a reliable and low-maintenance solution for your material handling needs.

As a manufacturing facility, GCS China understands the importance of flexibility and customization. We offer a wide range of gravity rollers, allowing you to choose the most suitable option for your specific requirements. This customization extends to our conveyor systems, as we can configure them to meet your unique operational needs. Our team of experienced professionals is ready to help you find the perfect solution for your business.
