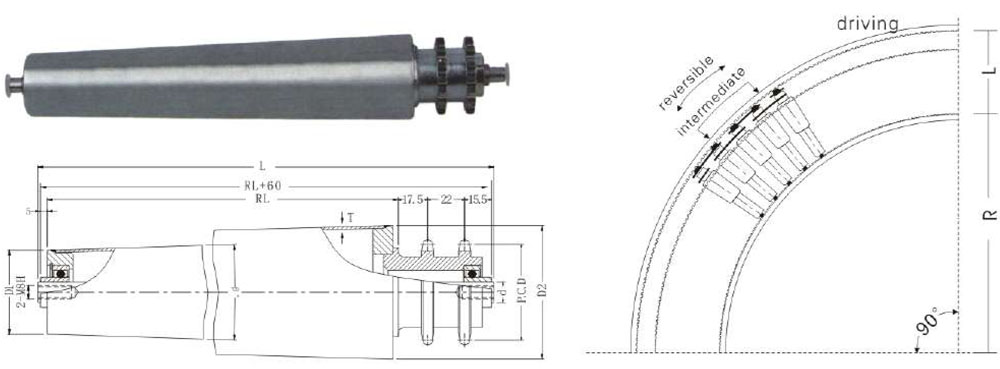

Conveyor roller, Curved roller with sprocket roller

Short Description:

Curved conveyor rollers with integrated conical design and dual-row sprockets are ideal for smooth, controlled turning in conveyor systems.

These rollers are specially engineered to maintain product orientation and consistent speed around curves, making them perfect for lightweight transportation of cartons, parcels, and bags.

Using precision tapered rollers, curved sections with various radii and angles can be customized to meet different layout and flow requirements. This ensures efficient and reliable material handling in sorting systems, packaging lines, and distribution centers.

Send email to us Download as PDF

Product Detail

Product Tags

Gravity roller with steel sprockets in stationary-driven roller

Gravity Roller (Light Duty Roller) is widely used in all kinds of industry, like manufacturing line, assembly line, packaging line, conveyor machine and logistic strore.

Model	Tube Diameter D (mm)	Tube Thickness T (mm)	Roller Length RL (mm)	Shaft Diameter d (mm)	Tube Material	Surface
PH50	φ 50	T=1.5	100-1000	φ 12,15	Carbon Steel Stainless Steel	Zincorplated Chrome plated
PH57	φ 57	T= 1.5,2.0	100-1500	φ 12,15
PH60	φ 60	T= 1.5,2.0	100-2000	φ 12,15
PH76	φ 76	T=2.0,3.0,	100-2000	φ 15,20
PH89	φ 89	T=2.0,3.0	100-2000	φ 20

Sprocket：14tooth*1/2”pitch or to order

Note: Customisation is possible where forms are not available

Processes & Applications

At GCS China, we understand the importance of efficient material transportation in industrial environments. To meet this challenge, we have developed a conveying system that combines gravity roller technology with the benefits of mechanical precision bearings. This innovative solution offers several key benefits to increase productivity and streamline operations.

Our agency partners are located all over the world and we provide individual support from pre-design, and physical production to sales so that the customer's needs are at the forefront.

Manpower Conveyor Roller Tap GCS Manufacturer-01 (7)

RollerShaft

Manpower Conveyor Roller Tap GCS Manufacturer-01 (8)

Roller Tube

Manpower Conveyor Roller Tap GCS Manufacturer-01 (9)

Roller Conveyor

Steel conical rollers, turning rollers, guide rollers

Steel conical rollers, turning rollers, guide rollers3

Service

For long-lasting performance, our conveyor systems utilize mechanical precision bearings. Known for their superior durability and load-carrying capacity, these bearings ensure that the rollers run smoothly and efficiently. In addition, our rollers are galvanized to add an extra layer of corrosion protection and extend their life. This ensures a reliable and low-maintenance solution for your material handling needs.

As a manufacturing facility, GCS China understands the importance of flexibility and customization. We offer a wide range of gravity rollers, allowing you to choose the most suitable option for your specific requirements. This customization extends to our conveyor systems, as we can configure them to meet your unique operational needs. Our team of experienced professionals is ready to help you find the perfect solution for your business.
