Sprocket standard steel conveyor roller
Sprocket standard steel conveyor roller
Feature
The transmission end is equipped with high-strength PA sprockets, which can provide greater rotational force and lower noise;
The end sleeve adopts plastic precision bearing assembly, which runs smoothly;
It can provide higher transmission torque and synchronization effect than all kinds of belt drives, without lubrication and simple maintenance.
General Data
| Conveying load | Single material≤30KG |
| Maximum speed | 0.5m/s |
| Temperature range | -5℃~40℃ |
Materials
| Bearing housing | Plastic & carbon steel components |
| Sealing end cap | Plastic components |
| Ball | Carbon steel |
| Roller surface | Steel/ Aluminum |

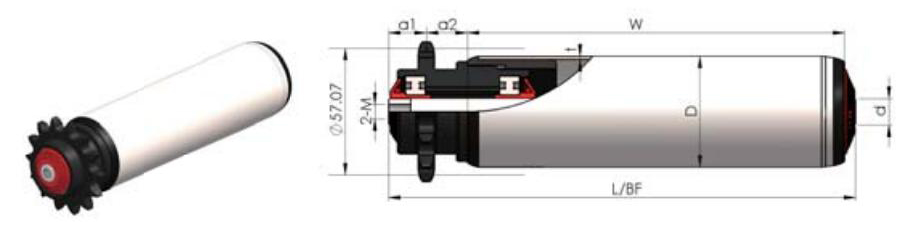

Structure
| Sprocket parameters | ||
| Sprocket | a1 | a2 |
| 08B14T | 18 | 22 |
Selection Parameter Table
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Locating step |
Shaft Length L |
Material |
Selection of the sample |
||
|
D |
t |
d |
BF |
(Female thread) |
Steel zincplated |
Stainless Steel |
Aluminum |
OD60mm Shaft dia 12mm |
||
|
Tube Length 1000mm |
||||||||||
|
Φ50 |
1.5 |
Φ12/15 |
150KG |
W+42 |
08B41T |
W+42 |
✓ |
✓ |
✓ |
Stainless steel 201, Female thread |
|
Φ60 |
2 |
Φ/12/15 |
160KG |
W+42 |
08B41T |
W+42 |
✓ |
✓ |
✓ |
1141.60.15.1000.B0.10 |
Remarks: Φ50 pipe can be covered with 2mm PVC soft rubber; Φ50 pipe can be equipped with cone sleeve for turning conveying, not suitable for food and dust-free environment requirements.
