Turning series rollers 1142C

Plastic-steel sprocket turnings
The inner cylinder is made of 1120 rollers (pipe diameterΦ50), plus a plastic taper sleeve, the standard taper is 3.6°, and the multi-ribbed belt is driven.

GLOBAL CONVEYOR SUPPLIES(GCS) Provides gravity conveyor rollers, sprocket rollers, grooved rollers, and tapered rollers, which are available in many sizes with a number of different configurations. Multiple bearing options, drive options, accessories, assembly options, coatings, and more allow us to accommodate almost any application. Rollers can be custom-built for extreme temperature ranges, heavy loads, high speeds, dirty, corrosive, and wash-down environments.
Our goal is to supply a roller that will last longer, work better, and is built to whatever size the customer needs. We want to be your one-stop shop for all of your conveyor roller solutions.

Send email to us Download as PDF

Product Detail

Product Tags

Plastic-steel Sprocket Turning Conveyor roller

Feature

The plastic-steel double-chain turning conveyor roller is suitable for conveying light and medium load materials.

1142 plastic-steel sprocket rollers are used, and plastic taper sleeves are installed to realize the turning function of plastic-steel sprockets.

PVC Cone Sleeve Roller, by adding a conical sleeve (PVC) to the conventional roller, various types of turning mixers can be made to realize curved conveying. Standard taper is 3.6°, special taper can not be customized.

Steel cone roll, non-standard size, wide temperature range, can be customized steel cone roll. 3.6° standard taper can be used, and other tapers can also be customized.

General Data

Conveying load	Single material≤100KG
Maximum speed	0.5m/s
Temperature range	-5°℃~40°c

Materials

Bearing housing	Plastic carbon steel components
Sealing end cap	Plastic components
Call	Carbon steel
Roller surface	Plastic

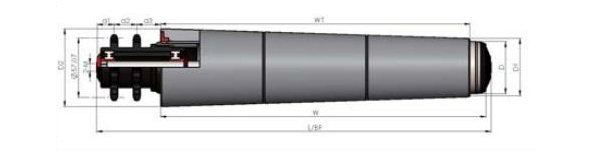

Structure

Sprocket parameters
Sprocket	a1	a2	a3
08B14T	18	22	18.5

Taper Sleeve Parameter Table
Taper Sleeve Length (WT)	Taper Sleeve Diameter (D1)	Taper Sleeve Diameter (D2)
300	Φ56	Φ74.9
350	Φ52.9	Φ74.9
400	Φ56	Φ81.1
450	Φ52.9	Φ81.1
500	Φ56	Φ87.4
550	Φ52.9	Φ87.4
600	Φ56	Φ93.7
650	Φ52.9	Φ93.7
700	Φ56	Φ100
750	Φ52.9	Φ100
800	Φ56	Φ106.3
850	Φ52.9	Φ106.3

Selection Parameter Table

Tube Dia	Tube thickness	Shaft Dia	Maximum load	Bracket width	Sprocket	Shaft Length L	Material			Selection example	Special requirements
D	t	d		BF		(Female thread)	Steel zincplated	Stainless Steel	Aluminum	Outer diameter 50mm Shaft diameter 12mm	Taper sleeve length 300mm
							AO	B1	CO	Roller surface length 400mm
Φ50	1.5	Φ12/15	100KG	W+64	08B14T	W+64	✓	✓	✓	Stainless steel 201, female thread 1142C.50.12.400.B.10
